[reprot] change AR5 transmission fluid change

Hi guys, I report you my today`s job.
I changed differential oil last week. Then I changed transmission oil today.
At first I had to remove under floor panel. Driver`s side bolts is OK but passenger side bolts was not able to remove alone.



Remove front muffler pipe from catalyst converter.

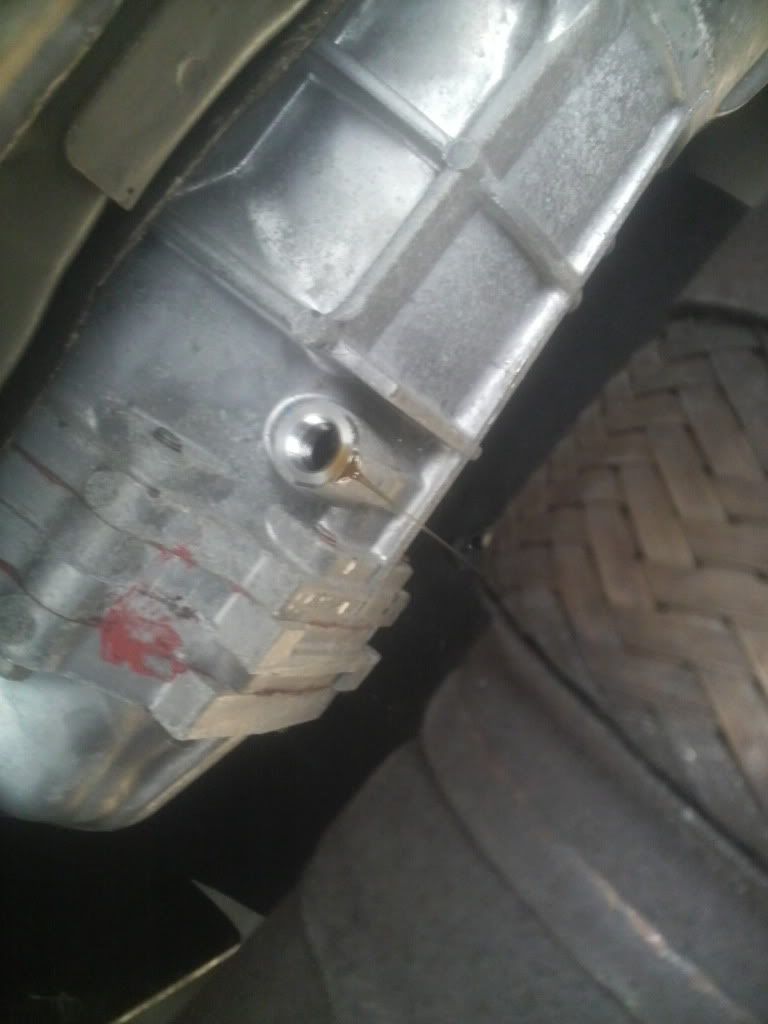

Remove drain bolt. I hear like a brow off air sound from transmission drain hole.

I guess that inside of atmospheric transmission case are different atmospheric.

???????????



Some guy knows about me, I living in Japan. I ordered this one for GM parts dealer in US. But this gasket was made in Japan. So ridiculous story I imported this parts from US, but this parts export to US from Japan.
I know AR5 export form Japan made by Aishin. It`s cannot be help.

Re-fill plug position was narrow space there. I used plastic pipe.
Then re-fill from engine room.



I found many metal powder in the pan. I decide change oil every 20000 mile.

2008 RL turbo 5SP
LED tail system
HID head and fog lamp
OPEL GT dual horn

Last edited by Gordon shamway; 09-08-2012 at 12:35 AM.
Gordon shamway is offline
Sponsored Links
Advertisement

post #2 of 44 (permalink) Old 09-08-2012, 02:08 AM
Senior Member

JohnRR's Avatar

Join Date: Jul 2011
Location: Lititz, PA
Posts: 195
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Garage
Hi Gordon,
Great write up and nice photos too.
How much oil did it take to refill the trans?
What type and brand of oil did you use?

Thanks,
John
JohnRR is offline
post #3 of 44 (permalink) Old 09-08-2012, 09:53 AM
Senior Member

miller11386's Avatar

Join Date: Jan 2010
Location: Ohio
Posts: 2,964
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
nice write up!

A little metal in the pan are pretty common on all transmissions changes.

Love all the photos and details!
miller11386 is offline
post #4 of 44 (permalink) Old 09-08-2012, 11:38 AM Thread Starter
Senior Member

Gordon shamway's Avatar

Join Date: Apr 2011
Location: Japan
Posts: 339
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
<JohnRR
Thanks comment. I selected GM OEM oil P/N89021806 75W-90 G3.
I bought 3 q, The case drink 2.7~2.8q.
I am ex-GM sales, I never used another brand fluid.
If possible I want report you shift feel after change oil, but I cannot drive car yet.
Differential drain plug seal can reuse, but trans drain plug seal cannot reuse.

2008 RL turbo 5SP
LED tail system
HID head and fog lamp
OPEL GT dual horn
Gordon shamway is offline
post #5 of 44 (permalink) Old 09-08-2012, 11:45 AM Thread Starter
Senior Member

Gordon shamway's Avatar

Join Date: Apr 2011
Location: Japan
Posts: 339
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
<Miller11386
Quote:
A little metal in the pan are pretty common on all transmissions changes.
thanks info. at first, It was some trouble I guess when I sow a pan.
Some time I had miss sift when I hear rasping sound from gear.
Maybe my miss sift made by this metal powder. I must take care when I sift change.

2008 RL turbo 5SP
LED tail system
HID head and fog lamp
OPEL GT dual horn
Gordon shamway is offline
post #6 of 44 (permalink) Old 09-08-2012, 12:54 PM
Senior Member

Join Date: May 2012
Location: Antioch, NorCal.
Posts: 350
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Nice job Gordon, thanks for sharing.
Our Redline is an automatic.
So a little different.
Fluid and pan filter.
Will update later.

It's all about the dogs!
Starkie is offline
post #7 of 44 (permalink) Old 09-08-2012, 05:41 PM
Senior Member

lllfly's Avatar

Join Date: Apr 2009
Location: Elizabethtown, PA
Posts: 2,206
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Garage
Thanks for the post.
Keep posting great info.
JohnRR I will order the gaskets this week.
Great winter job.
LLLFLY

08 PW R/L 5-spd,The Wolf
Goodyear Blimp flight 2010 NASSM
Best of Show Old Bridge,NJ 2011
Best Interior 2012 NASSM
2nd American Legends 2013
DDMWORKS Loaded, Wind Restrictor
lllfly is offline
post #8 of 44 (permalink) Old 09-08-2012, 09:57 PM Thread Starter
Senior Member

Gordon shamway's Avatar

Join Date: Apr 2011
Location: Japan
Posts: 339
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
<starkie
My Transam has AT. But 700-R4 had not drain hole.
So long time ago I changed aftermarket oil pan with drain hole.
It`s can easy fluid change. (of cause I have to remove oil pan when filter remove from valve body)
I never seem SKY AT yet. If you change your AT fluid next time, Please up your pics in this site.

2008 RL turbo 5SP
LED tail system
HID head and fog lamp
OPEL GT dual horn
Gordon shamway is offline
post #9 of 44 (permalink) Old 09-08-2012, 10:12 PM Thread Starter
Senior Member

Gordon shamway's Avatar

Join Date: Apr 2011
Location: Japan
Posts: 339
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
<lllfly
It`s my pleasure Every time this forum member helped me.
So If I can tell you my maintenance report, and that can help you, I would like to share information with you.
Next weekend, my driver license back from police. I going to KYOTO.
So now I want to my SKY that keep good condition

2008 RL turbo 5SP
LED tail system
HID head and fog lamp
OPEL GT dual horn
Gordon shamway is offline
post #10 of 44 (permalink) Old 09-09-2012, 07:59 PM
Member

Elff's Avatar

Join Date: Jun 2008
Location: Keebler, PA
Posts: 3,880
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Garage
Great writeup Gordon.

Try to keep your license for a while this time around. I know our cars make that hard.

LUSIFER

I'm not short, I'm concentrated AWESOME
Elff is offline
post #11 of 44 (permalink) Old 09-09-2012, 08:54 PM Thread Starter
Senior Member

Gordon shamway's Avatar

Join Date: Apr 2011
Location: Japan
Posts: 339
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
<Ellf
Yes, you so correct. Over 70% cases were false charge in Japan. Me too.
It is too much strangeness that nobody do not grievance to organization of law system. Just anger.
We are fighting with the police about the traffic clamp down system.
I hear one US rumor. “Majority rule”. If this rumor is existent in US, it`s owelty system I think.
At least Police does not care about traffic safety, they only want get money from citizen people.

2008 RL turbo 5SP
LED tail system
HID head and fog lamp
OPEL GT dual horn
Gordon shamway is offline
post #12 of 44 (permalink) Old 09-09-2012, 09:03 PM
Member

Elff's Avatar

Join Date: Jun 2008
Location: Keebler, PA
Posts: 3,880
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Garage
That sucks. Kudos to you for sticking up for yourself!!!

Alot of that is B.S. here too.
Tickets in the US are a source of income for the Police budget.
They really don't care about the safety either. That is simply the justification they use.

LUSIFER

I'm not short, I'm concentrated AWESOME
Elff is offline
post #13 of 44 (permalink) Old 09-10-2012, 10:14 AM Thread Starter
Senior Member

Gordon shamway's Avatar

Join Date: Apr 2011
Location: Japan
Posts: 339
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
Quote:
That sucks. Kudos to you for sticking up for yourself!!!

Alot of that is B.S. here too.
Tickets in the US are a source of income for the Police budget.
They really don't care about the safety either. That is simply the justification they use.
Ya! I will be my best!
By the way, " Tickets in the US are a source of income for the Police budget"
That`s mean tickets is make change personal income for police right?
In Japan case, It`s not personal police income, government gather this fine and this money through to individual company. this company worker are all ex police.
That` company is "descent from heaven" company.

2008 RL turbo 5SP
LED tail system
HID head and fog lamp
OPEL GT dual horn
Gordon shamway is offline
post #14 of 44 (permalink) Old 09-10-2012, 10:19 AM
Member

Elff's Avatar

Join Date: Jun 2008
Location: Keebler, PA
Posts: 3,880
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Garage
That sounds kind of shady.

In the US alot of local police departments have very limited and small budgets, so the tickets help pay for their costs including the salaries of the Police.

Is it true that in Japan, if you are going faster than a certain speed the cops will not chase you because their cars are not fast enough?

LUSIFER

I'm not short, I'm concentrated AWESOME
Elff is offline
post #15 of 44 (permalink) Old 09-10-2012, 10:42 AM
Senior Member

TomatoSoup's Avatar

Join Date: Nov 2009
Location: Gaithersburg, MD
Posts: 2,887
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 67 Post(s)
I would make a suggestion here - maybe you can modify the original how-to - ALWAYS check and remove the FILL plug FIRST (BEFORE draining your oil).

Nothing worse than having an empty transmission and a rounded-off fill plug (don't ask me how I know).

Owner of "Campbelle", a Brazen 2008 GXP ... with mods piling up...
